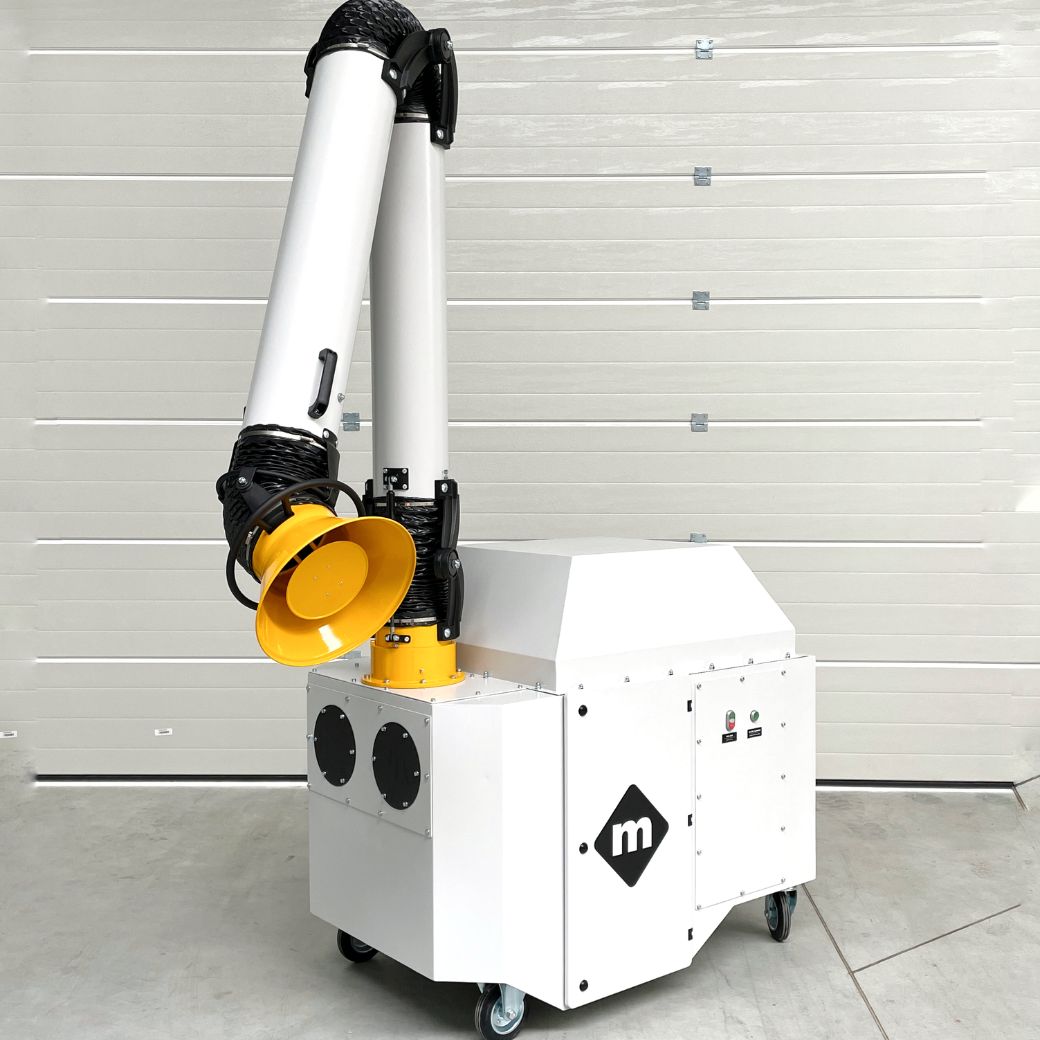

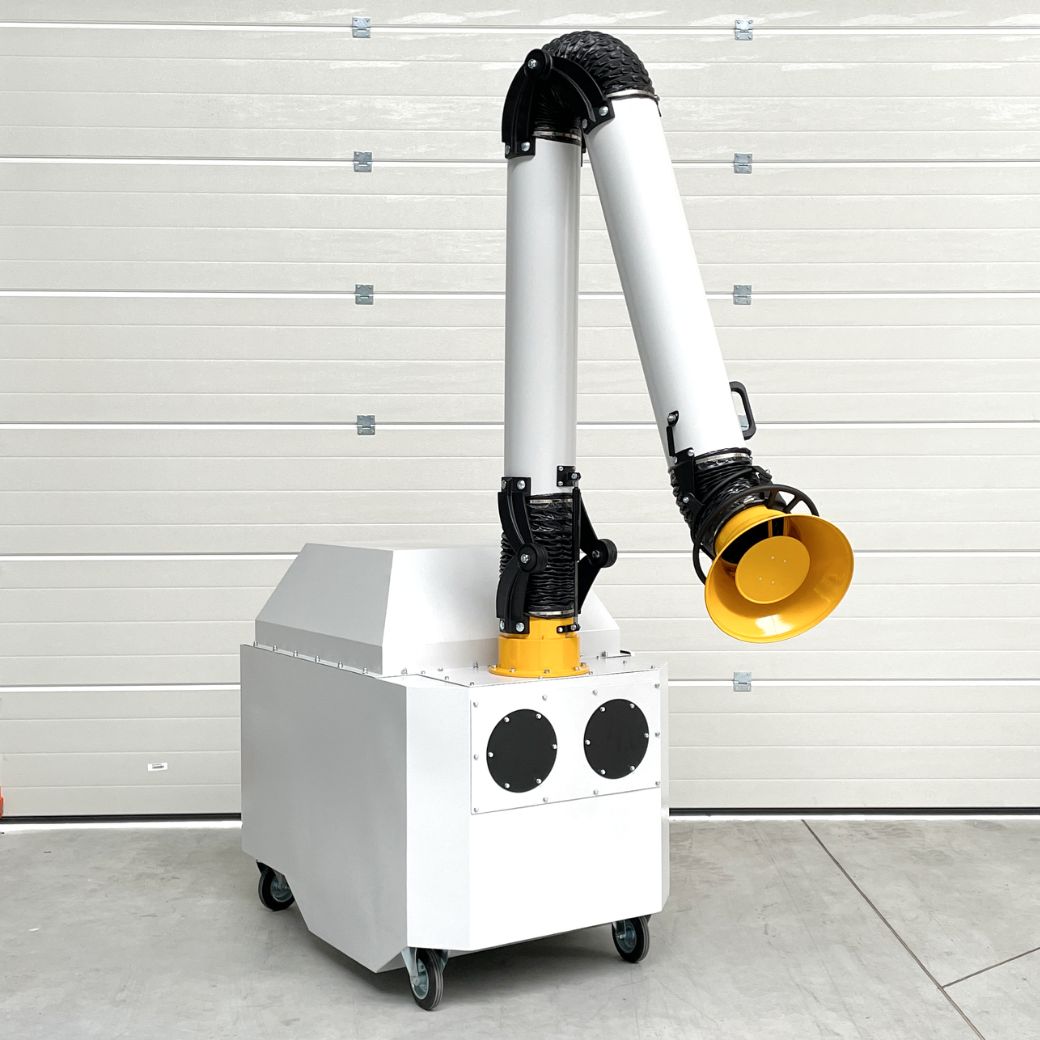

Giant 2 Mobile Cartridge Filter
Giant 2 is designed for the extraction and purification of air from dry dust in the processes of welding, grinding, polishing, pouring, cutting metals and plastics. This device can service two work stations or emission points using Oskar 160 extraction arms or one requiring doubled extraction efficiency using Oskar 200 arm. Giant 2 is equipped with a three-stage filtration system with a built-in main cartridge regeneration system. Contaminated air is cleaned by a metal pre-filter (spark arrestor), a main cartridge filter and an outlet cartridge made of non-woven fabric impregnated with activated carbon. The main cartridge regeneration system, which uses compressed air to clean the cartridge filter from accumulated impurities, has its own 20l compressed air tank. Giant 2 Mobile Filter is recommended for tasks requiring constant extraction and filtration of air impurities. Optional configurations include automatic operation mode (photosensor) and lighting mounted in the suction cup of the Oskar arm.
Stan 2002 jest dostępny z filtrami w technologii extreme.
Application
- work in difficult and demanding conditions, where constant operation of the exhaust system is required
- large amounts of dry air pollutants (except for caustic or chemically aggressive ones)
High efficiency and flexibility of use
The device is characterized by a capacity of 2000 m³/h, which allows:
- Servicing one station requiring increased extraction capacity using the Oskar 200 arm
- Servicing two workstations or emission points using the Oskar 160 extraction arms
Construction

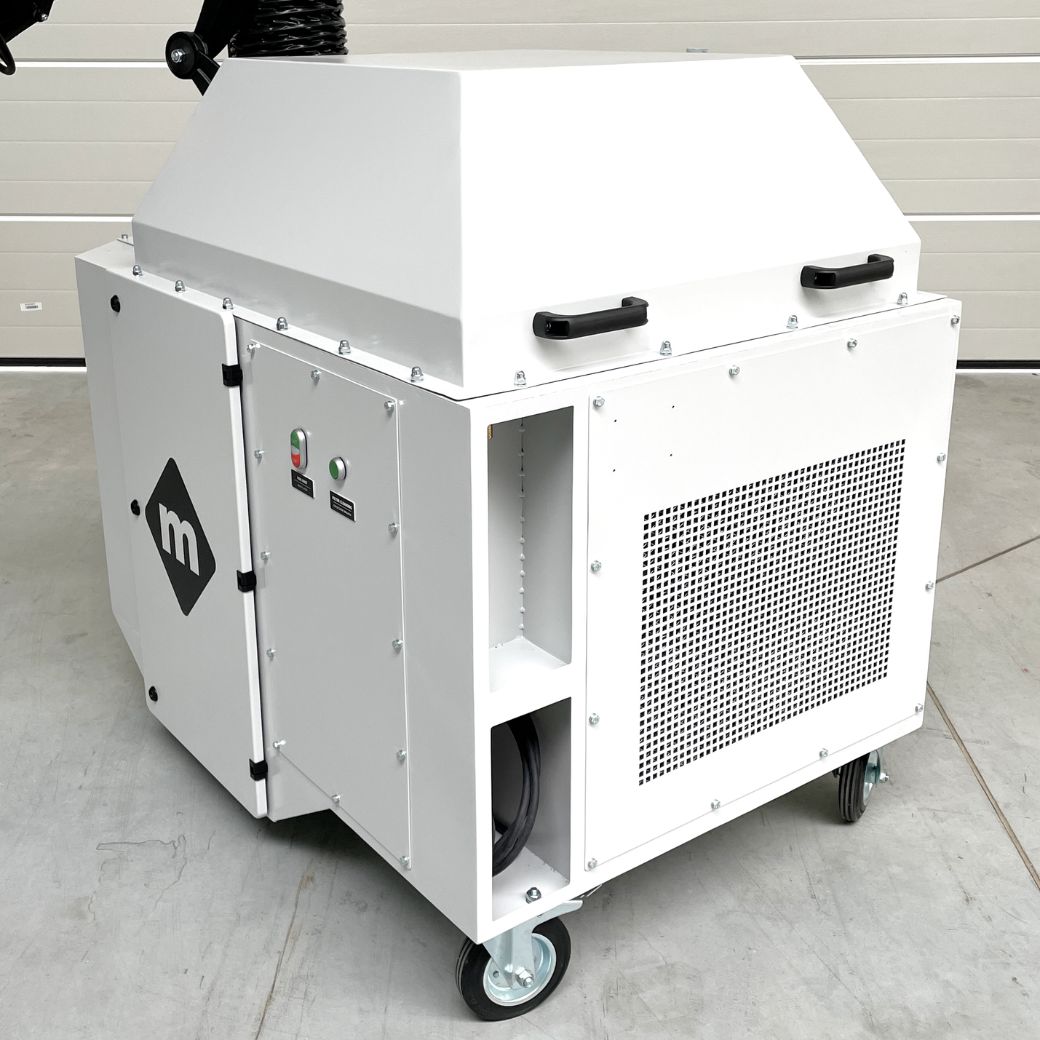

- steel, welded, powder-coated housing
- extreme filtration quality
- modernized housing with doors with rounded corners
- main cartridge regeneration system with manual control
- built-in cleaning system with compressed air tank
- three filtration stages (metal pre-filter, two high-efficiency main cartridge cartridges, outlet mat impregnated with activated carbon)
- easy access to operating elements and device operation control
- cooperation with Oskar 160 self-supporting standing arms

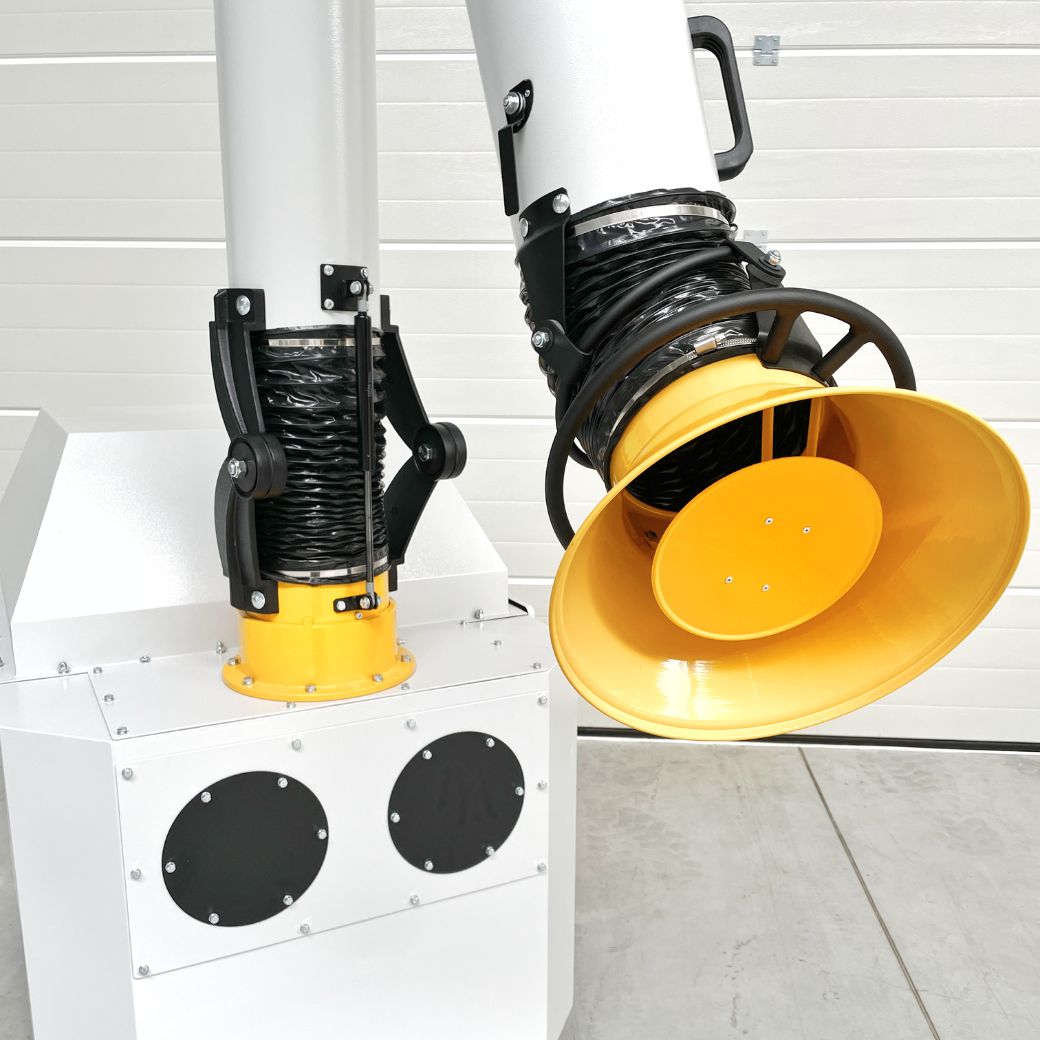

Recommended standing OSKAR arms 160 i 200 series
- 2 x OC1620P – 101506
- 2 x OC1630P – 101508
- OC2020P – 101512
- OC2030P – 101508
Giant parameters
| PCD Performance Classic Drive | |
|---|---|
| air flow unit | aluminum impeller with induction motor |
| air flow max | 2200 m³/h |
| power supply | 3~400V | 50Hz |
| power | 2,2 kW |
| noise level | 75 dB(A) |
| Drawing No | 101964 |
