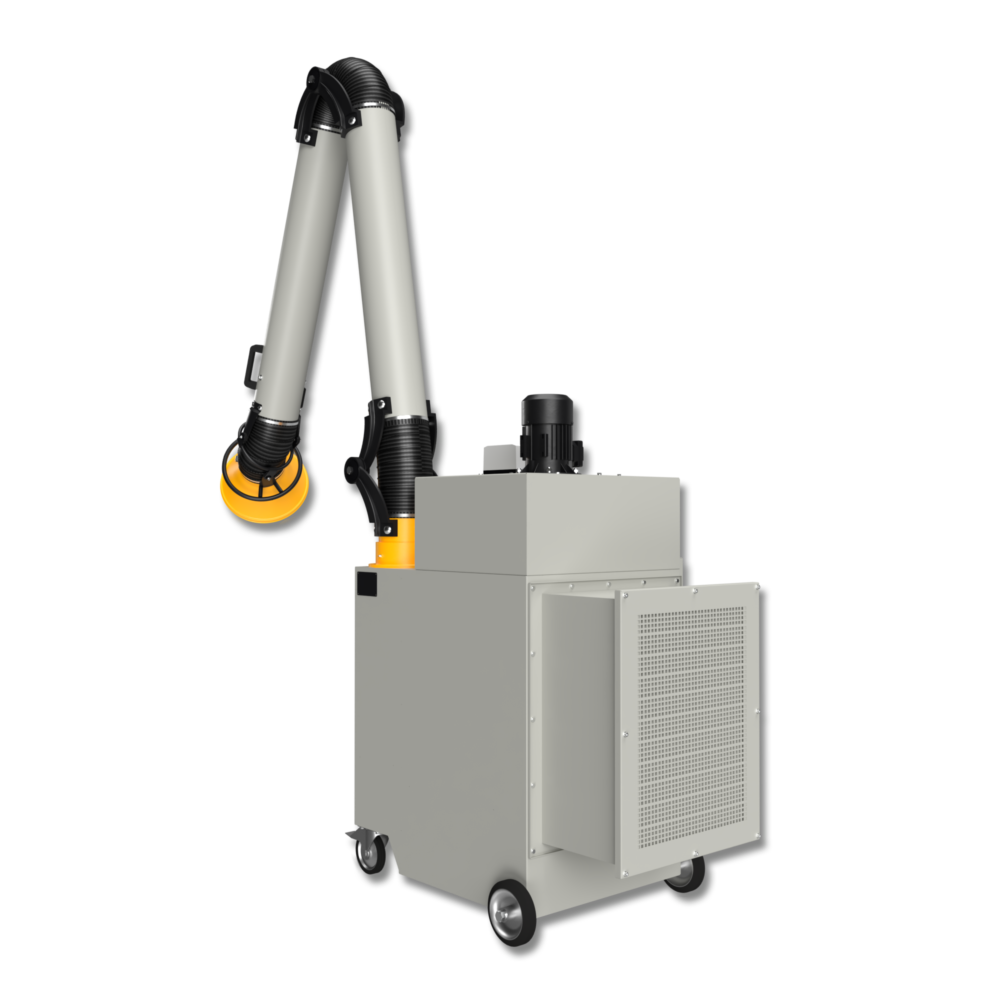

Rollout Mobile Cartridge Filter
Rollout is designed for the extraction and purification of air from dry dust in the processes of welding, grinding, polishing, pouring, cutting metals and plastics. Rollout is equipped with a three-stage filtration system with a built-in main cartridge regeneration system. Contaminated air is cleaned by a metal pre-filter (spark arrestor), a cartridge main filter and an outlet cartridge made of non-woven fabric impregnated with activated carbon. The main cartridge regeneration system, which uses compressed air to clean the cartridge filter from accumulated impurities, has its own 10 l compressed air tank. Rollout is recommended for tasks requiring constant extraction and filtration of air pollutants.
The Rollout mobile filter is available with eXtreme filter technology.
Models tailored to your needs
- advanced new-generation motor – the version with EC motor is characterized by energy efficiency, precise speed control and quiet operation
- reliable induction motor – a durable and reliable solution that ensures high power and failure-free operation even in difficult conditions
This allows the user to choose the technology that best suits their requirements – classic robustness or modern efficiency, remembering that each variant ensures reliability and high quality of extraction.
Application
- welding workshops
- industrial plants dealing with metal processing
- grinding and polishing workstations
- plastic pouring and cutting processes
The device works well in places where constant and effective air filtration from dry dust is required.
Construction
- steel, welded, powder-coated housing
- extreme filtration quality
- modernized housing with doors with rounded corners
- built-in cleaning system with compressed air tank
- three filtration stages (metal pre-filter, two high-efficiency main cartridge cartridges, outlet mat impregnated with activated carbon)
- easy access to operating elements and device control
- filter contamination indicator
- cooperation with Oskar 160 self-supporting standing arms
Recommended OSKAR standing arms 160 series
- OC1620P | 2m – 101506
- OC1630P | 3m – 101508
Rollout parameters
| Performance Classic Drive | Performance Smart Drive | Comfort Smart Drive | |
|---|---|---|---|
| air flow unit | aluminum impeller with induction motor | aluminum impeller with EC motor | composite impeller with EC motor |
| air flow max | 1200 m³/h | 1200 m³/h | 1100 m³/h |
| power supply | 3~400V | 50Hz | 1~220-277V | 50Hz | 1~200-277V | 50Hz |
| power | 1,1 kW | 1,1 kW | 0,78 kW |
| noise level | 72 dB(A) | 72 dB(A) | 67 dB(A) |
| Drawing No | 101237 | 105767 | 105456 |
Individual Product Cards:
- Rollout 101237-Rollout-PCD-IKW-EN
- Rollout 105767-Rollout-PSD-IKW-EN
- Rollout 105456-Rollout-CSD-IKW-EN
