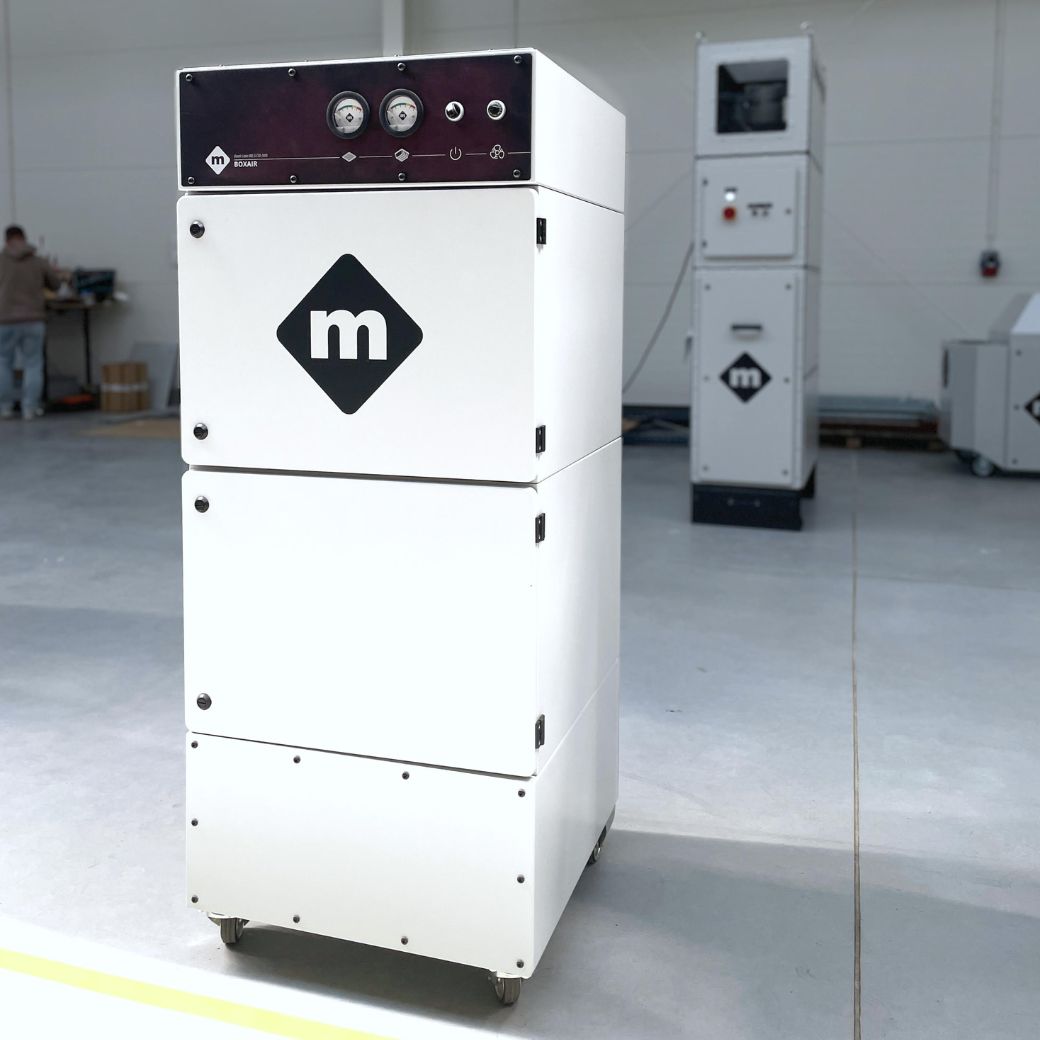

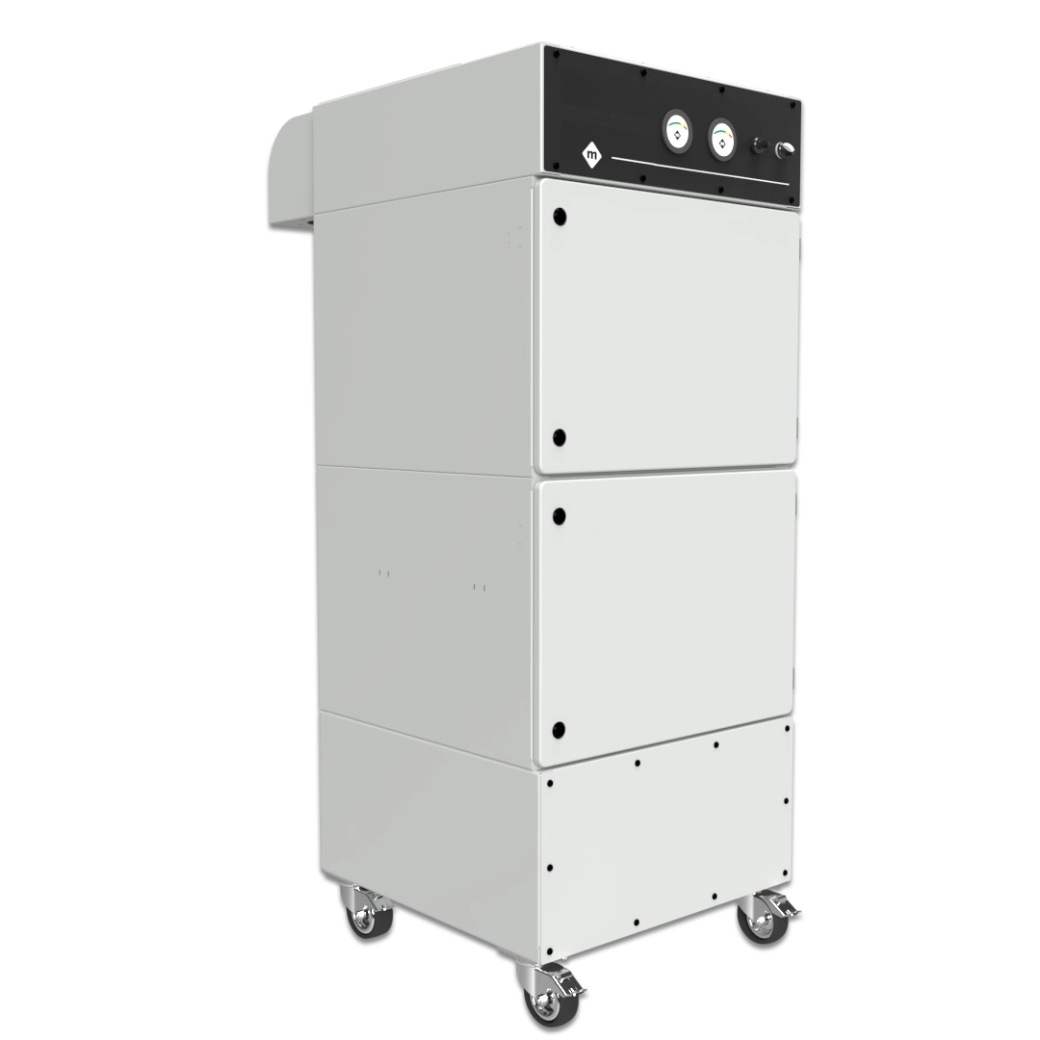

Designed to handle laser cutting and engraving processes
Boxair Laser Engraver effectively eliminates contaminants thanks to the use of specialized CamCarb filters, activated with activated carbon. They adsorb volatile organic compounds and neutralize bothersome and harmful odors. This solution is irreplaceable in many industries where clean and safe air is required.
This device is an ideal solution for plants that require comprehensive air purification from fine dust, gaseous pollutants and bothersome odors, while ensuring protection of the working environment and improvement of air quality.
Ideal solution for:
- Cutting & Engraving (laser processing of plastics, composites, metals, and wood)
- Electronics Manufacturing (elimination of soldering fumes, dust-vapor mixtures, and VOC emissions)
- Chemical & Coating Industry (removal of particles and gases generated during painting, gluing, and chemical production processes)
- Laboratories & Pharmaceuticals (local ventilation for the removal of airborne dust, gases, or their mixtures)
Construction
- steel welded construction, powder coated
- composite rotor with ec motor
- multi-stage filtration, two initial levels (coarse and fine)
- smooth flow regulation
- easy access to filters
- parameter monitoring
- anodized panel with manometers
- industrial switches in IP66 class
- remote control output
- ready for installation or Oskar 160 extraction arm
- dimension 650 x 730 x 1573 mm
Boxair Laser Engraver parameters
| Comfort Smart Drive | |
|---|---|
| air flow unit | composite impeller with EC motor |
| air flow max | 1100 m³/h |
| power supply | 1~ 200-277V | 50/60Hz |
| power | 0,78 kW |
| noise level | 70 dB(A) |
| Drawing No | 105934 |
