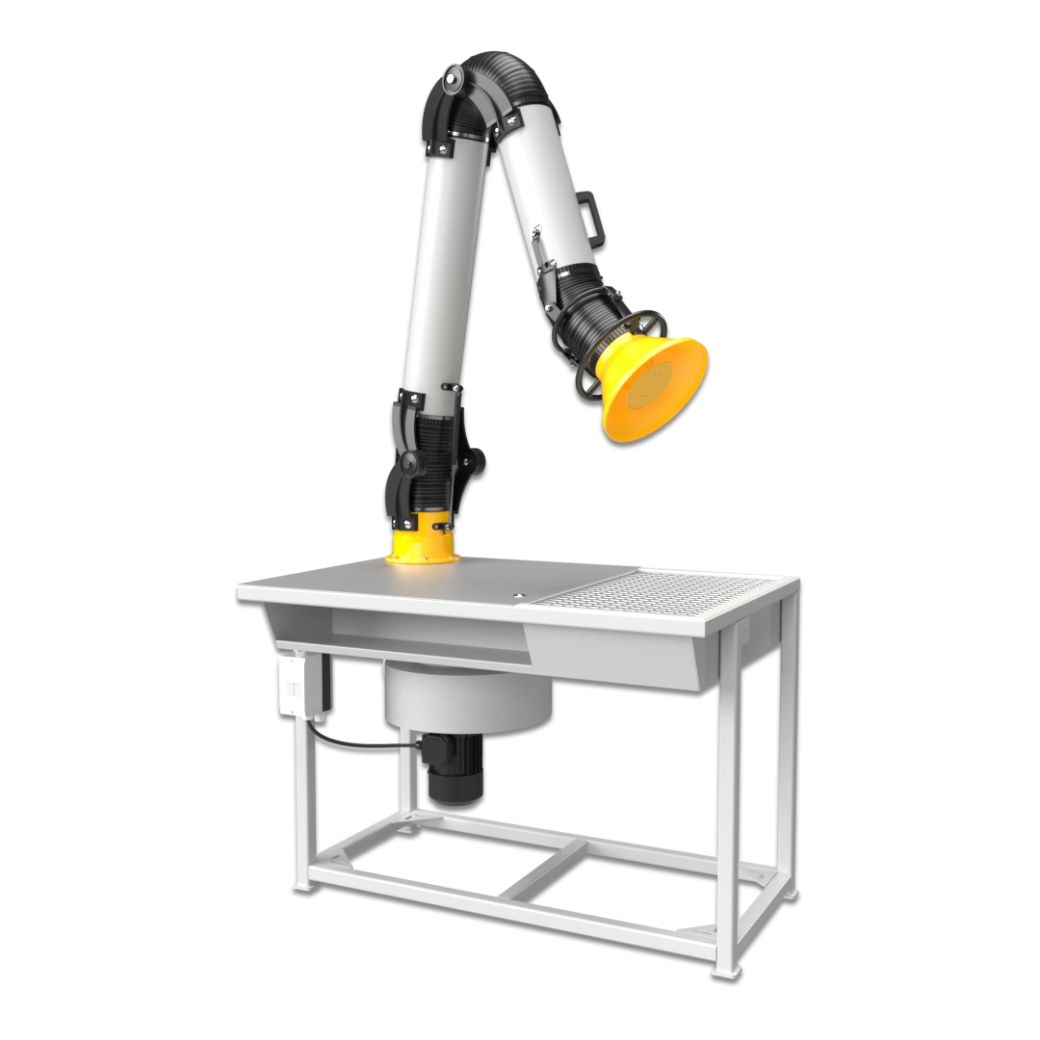

Workstation S-1000 – welding table with two extraction systems
The S-1000 welding table is a workstation equipped with solutions that protect against airborne contaminants generated during workshop operations (primarily welding). The device is designed with durability, ergonomics, and high extraction efficiency in mind.
Application
- MIG/MAG and TIG welding
- MMA welding
- grinding of steel and stainless steel elements
- assembly and welding work in workshops and production halls
- machining of small details – using a built-in rotary table
- removal of dust and gas pollution directly at the source
- service and maintenance work in industrial plants
- use in training and vocational education centers
Construction
- Durable, welded frame made of closed square profiles ensures stability and long service life
- dual-zone extraction system: lower extraction through a grid in the tabletop, upper extraction via an arm (ZWR-03 unit with aluminum impeller)
- airflow control via independent dampers in the arm and tabletop allows for adapting the extraction intensity to the process type
- ZWR-03 fan with a nominal capacity of 1000 m³/h and a power of 0.75 kW ensures effective conveyance of contaminants to the exhaust system
- work surface with an anti-corrosion, conductive finish allows for easy connection of the ground cable on both sides of the table
- welded, powder-coated steel construction (except for the work surface)
- compatible with Oskar 160 and Econ 160 free-standing arms
Workstation S-1000 parameters
| S-1000 | |
|---|---|
| air flow nominal | 1000 m³/h |
| power | 0,75 kW |
| power supply | 3~400V | 50Hz |
| noise level | 76 dB(A) |
| drawing number | 101576 |
Individual Product Card:
Workstation S-1000 101576-S-1000-IKW-EN
