great partner in local air pollution control with two work stations

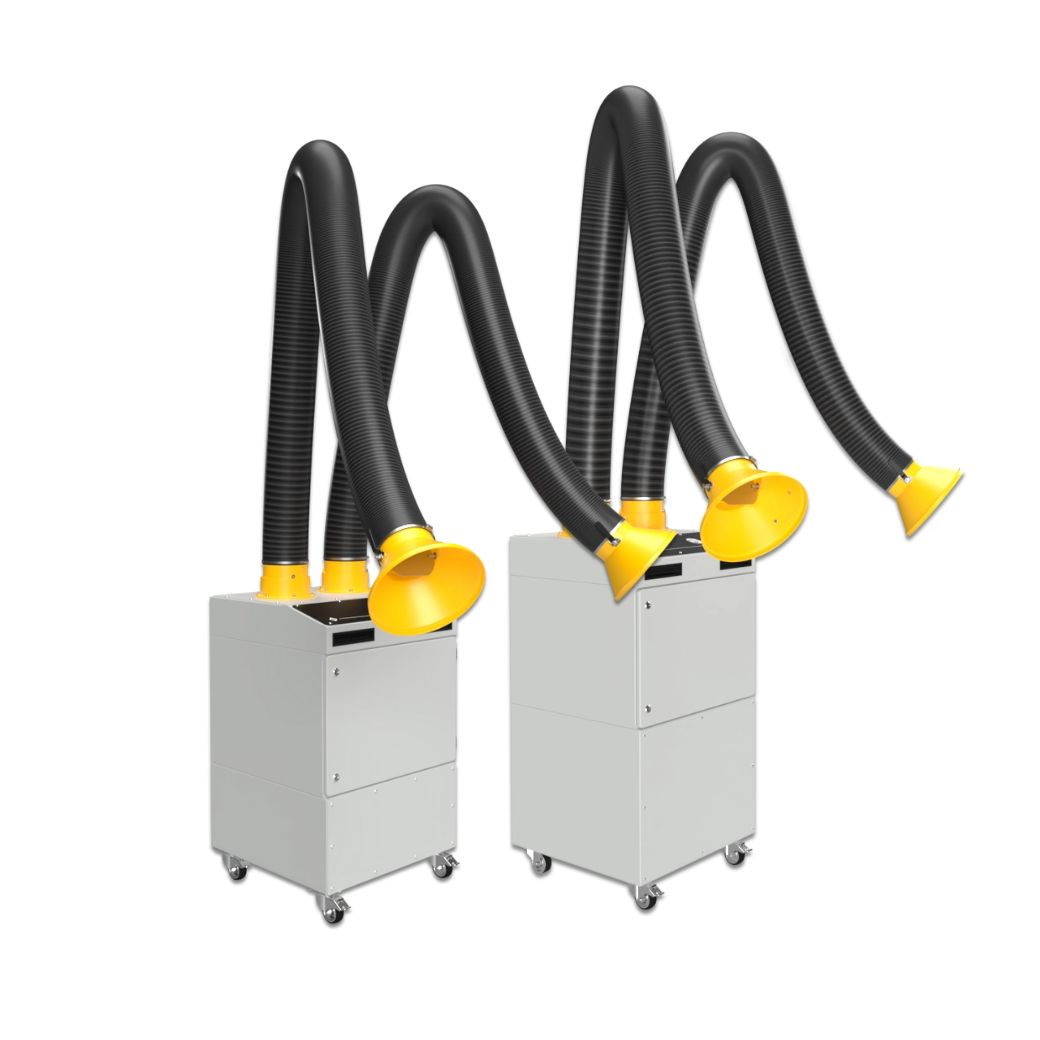

Boxair Welding Mobile is a mobile filtration device designed to eliminate dust and fumes generated mainly during welding work. The device allows for locating air pollution at the source of its formation thanks to the use of an Econ or Oskar 160 series extraction arm. The Boxair BXWM5 filter set consists of a metal pre-filter and a replaceable compact main cartridge.
The new, refreshed Boxair BXWM line offers improved design and modern functionality. Anodized aluminum panel, a pressure gauge for precise monitoring of filter contamination and an IP66 button introduce a new quality, increasing the efficiency of the device.
Models tailored to your needs
- advanced new-generation motor – the version with EC motor is characterized by energy efficiency, precise speed control and quiet operation
- reliable induction motor – a durable and reliable solution that ensures high power and failure-free operation even in difficult conditions
This allows the user to choose the technology that best suits their requirements – classic robustness or modern efficiency, remembering that each variant ensures reliability and high quality of extraction.
Application
- occasional welding work where continuous operation of the exhaust system is not required
- small to moderate amounts of dry air pollutants (except corrosive or chemically aggressive ones)
Construction
- anodized panel with pressure gauge, industrial switches, modernized housing with doors with rounded corners
- metal pre-filter and high-efficiency compact main cartridge
- two filtration levels
- easy access to filter cartridges
- filter contamination indicator
- steel, welded, powder-coated housing
- cooperation with Econ 160 or Oskar 160 self-supporting standing arms
Recommended standing ECON arms 160 series
- 2 x E1620P – 101534
- 2 x E1630P – 101536
Boxair BXWM5 parameters
| Performance Classic Drive | Performance Smart Drive | Comfort Smart Drive | |
|---|---|---|---|
| air flow unit | aluminum impeller with induction motor | aluminum impeller with EC motor | composite impeller with EC motor |
| air flow max | 1400 m³/h | 1400 m³/h | 1300 m³/h |
| power supply | 1~230V | 50Hz | 1~220-277V | 50Hz | 1~200-277V | 50Hz |
| power | 1,1 kW | 1,1 kW | 0,78 kW |
| noise level | 74 dB(A) | 74 dB(A) | 70 dB(A) |
| Drawing No | 105085 | 105085 | 105705 |
Details:

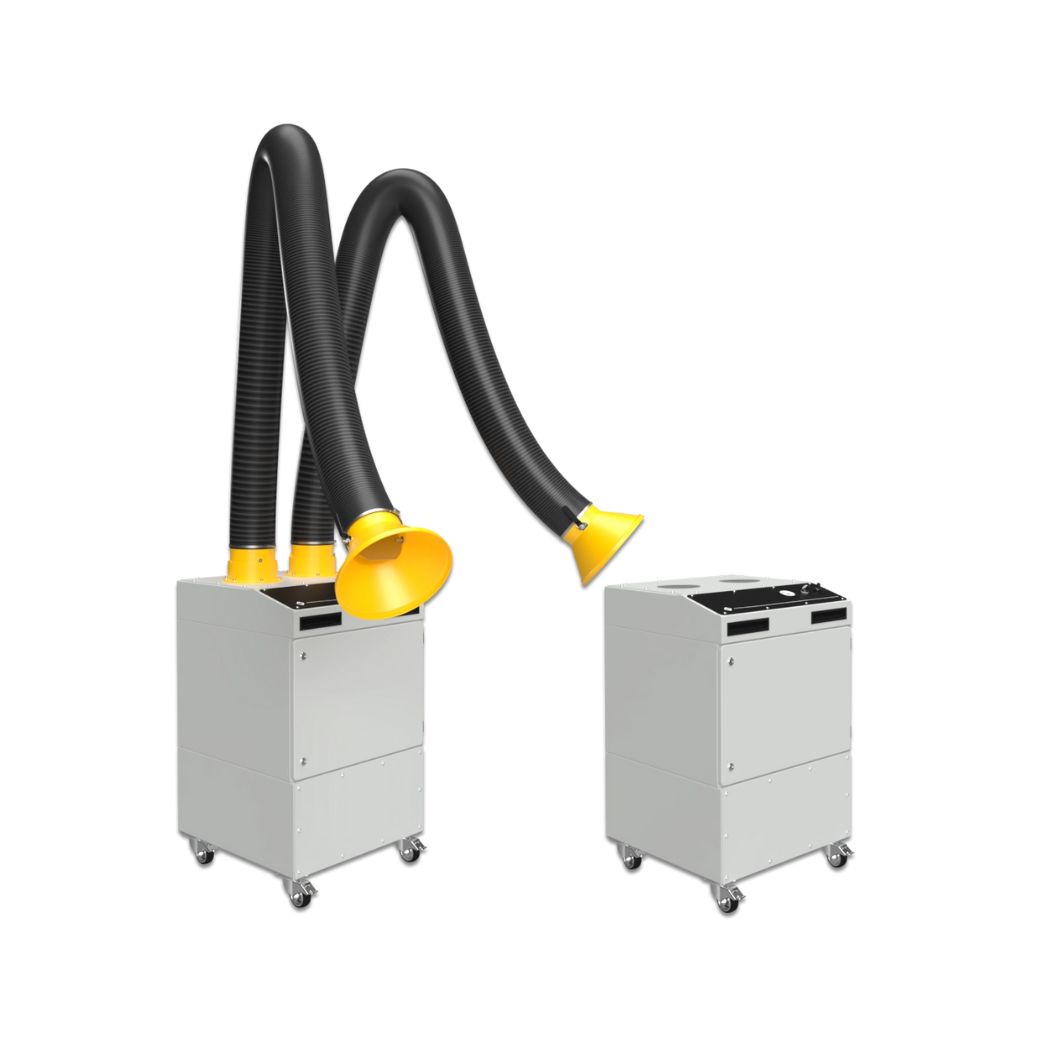

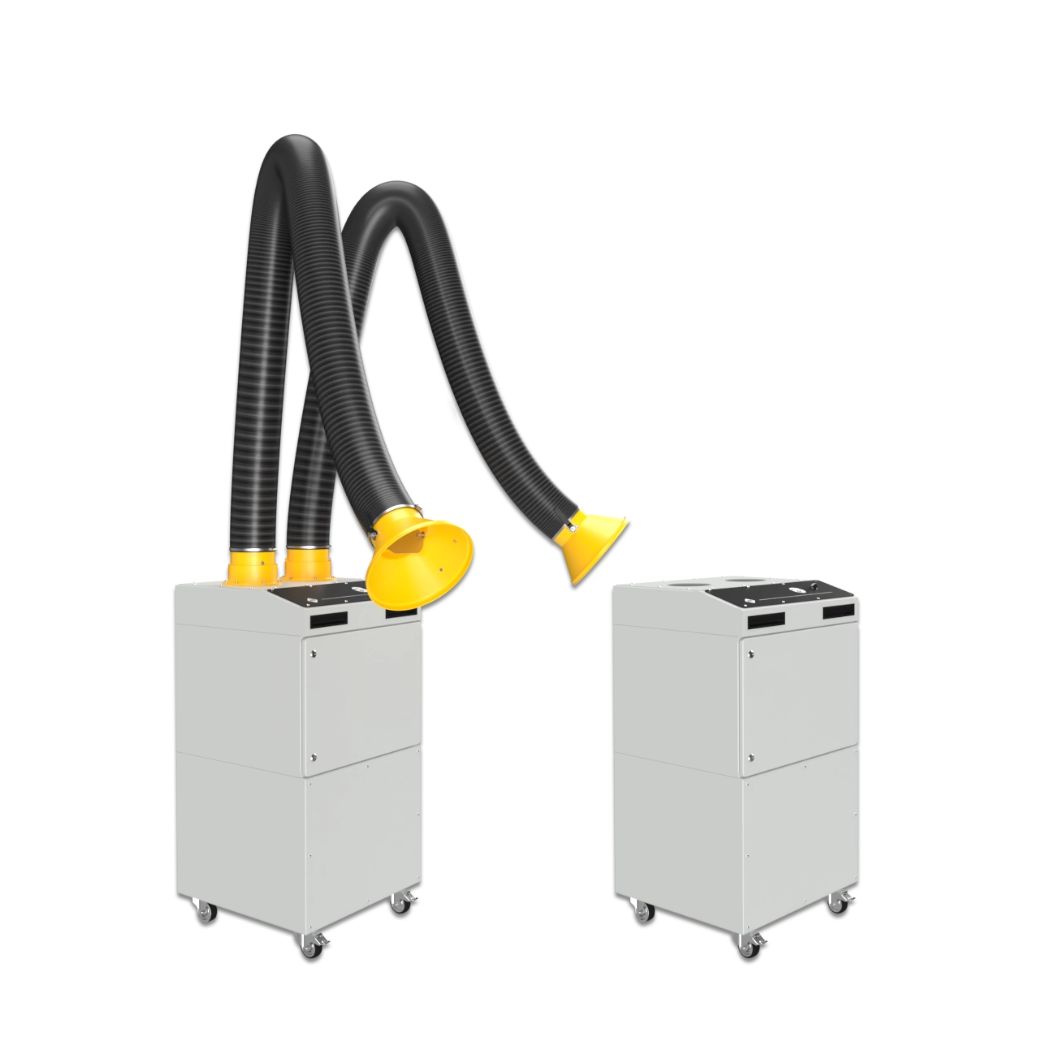

105085-Boxair-BXW-M5-PCD-IKW105705-Boxair-BXW-M5-CSD-IKW
